Description

The LiteWire is a two piece, True RMS ammeter with a fi ber optic link between the high voltage sensor and the readout at ground potential. The sensor is mounted on a hot stick and slipped over a high voltage line.

The opening of the sensor is electronically closed and external currents are also electronically rejected. This means that a user can measure an individual conductor within close proximity to adjacent current carrying conductors.

Features

• Fiber Optic Isolation brings the signal down to ground
• Open CT that rejects stray magnetic fields
• Analog output for waveform analysis accurate to approximately the 50th harmonic
• Analog output 0-2 volt AC signal at ground. This allows the use of many sophisticated low voltage instruments, such as scopes, waveform acquisition recorders, analyzers, and other analysis instruments which would previously not be usable at high voltage
• Water resistant case withstand high physical impact

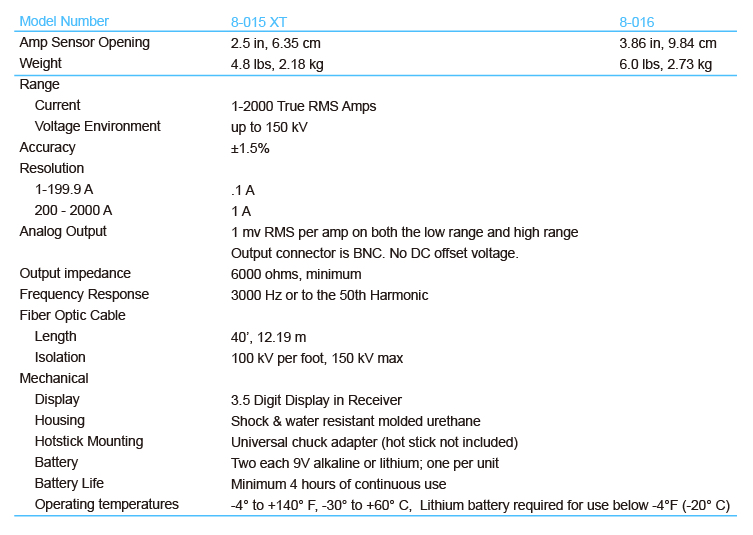

Specifications

Application

• View Current from the primary
• Analyze Current Waveform from the primary
